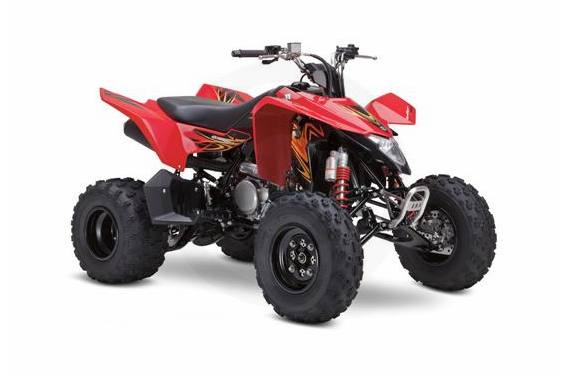

2009 Suzuki QuadSport Z400 Limited

Suzuki Clearance

Now until September 30, 2010
$500.00 Off MSRP
Request a Quote Financing Calculator Request a Brochure Financing Form

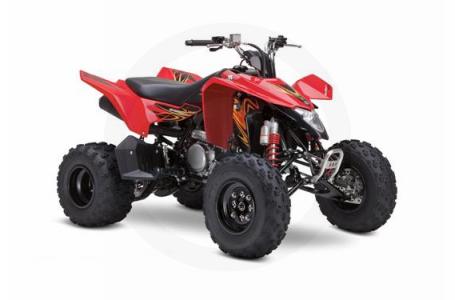

Click here to view full image.
Red/Black
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    New Features
    • All-new Suzuki fuel-injection system features a 36mm throttle body and 12-hole injector that delivers the fuel/air mix in an efficient fine-mist spray pattern
    • Engine Control Unit uses a 16-bit CPU and a 96-kilobyte ROM unit. The system is programmed to obtain improved traction by selecting the optimum injection volume, injection timing and ignition timing based on throttle position, engine rpm, and other data monitored
    • New styling reflects the powerful attitude of the QuadRacer R450, including the sharp fenders, the overall slim design and the removable headlight
    • The chassis's rigidity balance is changed to improve handling stability, chassis strength and overall performance, particularly in rough terrain
    • Front track is widened by 25mm to improve overall handling stability feel
    • The footpegs are now 46mm wide - same as the QuadRacer R450
    Key Features
    • The new 2009 Suzuki QuadSport Z400 is re-engineered for high-performance off-road four-wheeling with smooth power-output and throttle response from Suzuki fuel injection
    Engine Features
    • Compact & lightweight 398cc 4-stroke, single-cylinder, liquid-cooled Dual Overhead Cam engine with counter- balancer tuned for tractable power over a wide rpm range
    • Liquid-cooling system with high-capacity radiator and thermostatically controlled cooling fan provides consistent engine operating temperature
    • Dry-sump lubrication system allows a compact crankcase and minimal engine height for optimum engine placement - oil tank is frame-mounted in front of the exhaust head pipes
    • Five-speed transmission with cable-operated clutch includes an easy-to-use reverse gear system: turn the fender-mounted knob and shift to reverse using the gear shift lever
    • Convenient electric start system includes Start-In-Gear feature - electric start system and CDI ignition are powered by compact maintenance-free battery
    Chassis Features
    • Dual 30/30W, vertically-mounted halogen headlights provide a bold look and bright illumination - large 5/21W taillight/brake light combination
    • Lightweight, high tensile steel-alloy frame and removable steel sub-frame, plus aluminum swingarm
    • Rear axle shaft taper is changed to heighten rigidity balance and provide optimum performance in conjunction with changes made to front track.
    • Long-travel, independent double A-arm front suspension with fully adjustable, piggyback reservoir-style shock absorbers - provides 8.5 in. of wheel travel
    • Linkage-type rear suspension features fully adjustable, piggyback reservoir-style shock absorber with 9.1 in. of wheel travel, plus 10.4 in. of ground clearance
    • Large 6.9 inch dual front disc brakes and single 8.6 inch rear disc brake
    • Front brake lever position adjustment mechanism is changed to the same system used on the high-performance QuadRacer R450, making brake adjustments much easier.
    • Lightweight aluminum alloy wheels (F: 10.0 x 5.5, R: 9.0 x 8.0), and radial tires (F: 22 x 7-10, R: 20x10-9), for reduced unsprung weight
    • Large 2.5-gallon fuel tank with two mounting points for quick removal and simplified maintenance
    Specifications
    • Engine: 4-stroke, liquid-cooled, DOHC
    • Bore Stroke: 90.0 mm (3.543 in) x 62.6 mm (2.465 in)
    • Compression Ratio: 11.3 : 1
    • Fuel System: Fuel injection
    • Lubrication: Dry sump
    • Ignition: Electronic ignition (CDI)
    • Transmission: 5-forward and 1-reverse
    • Final Drive: RK 520SMOZ10S, 96 links
    • Overall Length: 1830 mm (72.0 in)
    • Overall Width: 1190 mm (46.9 in)
    • Overall Height: 1145 mm (45.1 in)
    • Seat Height: 810 mm (31.9 in)
    • Ground Clearance: 265 mm (10.4 in)
    • Wheelbase: 1245 mm (49.0 in)
    • Curb Weight: 193 kg (425 lbs)
    • Suspension Front: Independent, double wishbone, coil spring, oil damped
    • Suspension Rear: Swingarm type, coil spring, oil damped
    • Brakes Front: Disc brake, twin
    • Brakes Rear: Disc brake
    • Tires Front: AT22 × 7 R10 tubeless
    • Tires Rear: AT20 × 10 R 9 tubeless
    • Fuel Tank Capacity: 9.5 L (2.5/2.1 US/Imp gal)
    • Color: Red/Black
    NOTES:

    Specifications and features are subject to change.


    Minimum Age: 16 Years Old


    Specifications

    Engine
    Engine Type 4-stroke, DOHC
    Displacement 398 cc
    Bore x Stroke 90.0 x 62.6 mm (3.543 x 2.465 in.)
    Cylinders Single
    Engine Cooling Liquid-cooled
    Fuel System Fuel injection
    Starting System Electric start system includes Start-In-Gear feature
    Chassis
    Front Suspension Independent, double wishbone, coil spring, oil damped
    Front Travel 8.5 in.
    Front Brake Type Disc brake, twin
    Front Tires AT22 × 7 R10 tubeless
    Rear Travel 9.1 in.
    Rear Suspension Swingarm type, coil spring, oil damped
    Rear Brake Type Disc brake
    Rear Tires AT20 × 10 R 9 tubeless
    Frame High tensile steel-alloy
    Dimensions/Capacities
    Dry Weight Curb Weight: 425 lbs (193 kg)
    Fuel Capacity 2.5 gal (9.5 l)
    Ground Clearance 10.4 in. (265 mm)
    Machine Dimensions (LxWxH) 72.0 x 46.9 x 45.1 in. (1830 x 1190 x 1145 mm)
    Wheelbase 49.0 in. (1245 mm)
    Drive Train
    Final Drive RK 520SMOZ10S, 96 links
    Transmission 5-forward and 1-reverse
    General
    Lighting Dual 30/30W, vertically-mounted halogen headlights, large 5/21W taillight/brake light combination
    Colors Red/Black
    Warranty 12 month limited warranty

    Compare Models

    		 Print








    Year 2009
    Manufacturer Suzuki
    Model QuadSport Z400 Limited
    Style Sport
    MSRP* $6,699.00
    Chassis
    Front Suspension Independent, double wishbone, coil spring, oil damped
    Front Travel 8.5 in.
    Front Brake Type Disc brake, twin
    Front Tires AT22 × 7 R10 tubeless
    Rear Suspension Swingarm type, coil spring, oil damped
    Rear Travel 9.1 in.
    Rear Brake Type Disc brake
    Rear Tires AT20 × 10 R 9 tubeless
    Frame High tensile steel-alloy
    Dimensions/Capacities
    Dry Weight Curb Weight: 425 lbs (193 kg)
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity
    Fuel Capacity 2.5 gal (9.5 l)
    Ground Clearance 10.4 in. (265 mm)
    Machine Dimensions (LxWxH) 72.0 x 46.9 x 45.1 in. (1830 x 1190 x 1145 mm)
    Wheelbase 49.0 in. (1245 mm)
    Drive Train
    Drive Train
    Final Drive RK 520SMOZ10S, 96 links
    Transmission 5-forward and 1-reverse
    Engine
    Engine Type 4-stroke, DOHC
    Displacement 398 cc
    Bore x Stroke 90.0 x 62.6 mm (3.543 x 2.465 in.)
    Cylinders Single
    Engine Cooling Liquid-cooled
    Fuel System Fuel injection
    Starting System Electric start system includes Start-In-Gear feature
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting Dual 30/30W, vertically-mounted halogen headlights, large 5/21W taillight/brake light combination
    Colors Red/Black
    Warranty 12 month limited warranty
