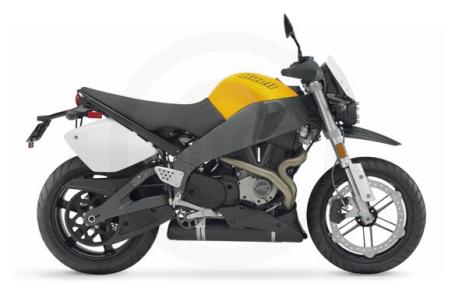

2007 Buell® Lightning® Super TT XB12STT
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The streetfighter is at the core of what Buell is all about. Pure sport-muscle performance. Broad, seamless power delivery. And superior handling. Upon closer inspection, you’ll find nothing but premium components and lightweight materials. The Lightning models also feature neutral ergonomics with wide bars and naturally-positioned footpegs. They provide great leverage, enabling you to ride confidently and aggressively.


Blending the hard core attitude of a streetfighter with the agility and style of supermoto, this defiant urban assault machine is the ultimate in moto self expression.


With customizable flyscreen and tail section number plates, the new XB12STT is screaming for customization. Additional sets are available and easily exchanged allowing your individual personality to show.

    Dimensions
    • Overall Length: 81.9 in. (2080 mm)
    • Overall Width: 32.3 in. (820 mm)
    • Seat Height: 30.4 in. (798 mm)
    • Ground Clearance: 5.50 in. (140 mm)
    • Rake (at Steering Head): 23.1°
    • Fork Angle: 21.6°
    • Lean Angle (Soft Contact, Right): 44°
    • Lean Angle (Soft Contact, Left): 44°
    • Lean Angle (Hard Contact, Right): 53°
    • Lean Angle (Hard Contact, Left): 46°
    • Trail: 4.7 in. (119 mm)
    • Wheelbase: 54.0 in. (1372 mm)
    • Tires (Type): Pirelli®
    • Tires (Front): Scorpion Sync, 120/70 ZR-17
    • Tires (Rear): Scorpion Sync, 180/55 ZR-17
    • Fuel Capacity: 4.40 gal. (16.7 l)
    • Reserve Fuel Capacity: 0.83 gal. (3.1 l)
    • MPG (EPA urban/highway test) Urban: 48 MPG (4.9 l/100 km)
    • MPG (EPA urban/highway test) Highway: 65 MPG (3.6 l/100 km)
    • Dry Weight: 400 lbs. (181 kg)
    • Weight/Gross Rating: 850 lbs. (386 kg)
    • Load Capacity: 377 lbs. (171 kg)
    Engine
    • Engine: Air/oil/fan-cooled, 4-stroke, 45° V-Twin
    • Valve Train: OHV, two valves per cylinder, self-adjusting
    • Bore: 3.500 in. (88.90 mm)
    • Stroke: 3.812 in. (96.82 mm)
    • Displacement: 73.4 cu. in. (1203 cc)
    • Compression Ratio: 10.0:1
    • Fuel Delivery: 49 mm down draft DDFI II fuel injection
    • Intake (Air Cleaner for Blast®): Zero-resistance airbox
    • Exhaust: Tuned, tri-pass resonance chamber with InterActive valve and mass-centralized mounting
    • Torque (North America per SAE J607): 84 ft. lbs. @ 6000 RPM (113 NM @ 6000 RPM)
    • Horsepower (North America per SAE J607): 103 HP @ 6800 RPM
    • Lubrication: Dry-sump
    • Oil Capacity (Lubrication for Blast®): 2.5 qts. (2.4 l)
    • Oil Filtration: Screw-on disposable element
    Drivetrain
    • Primary Drive: Chain, 1.500:1 (57/38) ratio
    • Final Drive: Constant path, 14 mm pitch aramid-reinforced Hibrex® belt with Flexten® Plus technology, 2.407:1 (65/27) ratio
    • Clutch: Wet, multi-plate, compensated reduced lever effort
    • Transmission: 5-speed, helical gear
    • Overall Ratio (1st): 2.648
    • Overall Ratio (2nd): 1.892
    • Overall Ratio (3rd): 1.407
    • Overall Ratio (4th): 1.166
    • Overall Ratio (5th): 1.000
    Chassis
    • Frame: Aluminum frame with Uniplanar™ powertrain vibration isolation system, fuel in frame
    • Front Fork: 43 mm Showa® inverted forks with adjustable compression damping, rebound damping and spring preload
    • Rear Shock: Showa® coil-over monoshock with remote, under-seat reservoir and adjustable compression damping, rebound damping and spring preload
    • Wheel Color: Designer Black
    • Wheel/Front (Type): 6-spoke, ZTL™ cast aluminum
    • Wheel/Front (Diameter): 17 in. (432 mm)
    • Wheel/Front (Width): 3.5 in. (89 mm)
    • Wheel/Rear (Type): 6-spoke, cast aluminum
    • Wheel/Rear (Diameter): 17 in. (432 mm)
    • Wheel/Rear (Width): 5.5 in. (140 mm)
    • Brakes (Front): ZTL™-type brake, 6-piston, fixed caliper, 375 mm single-sided, inside-out, stainless steel, floating rotor
    • Brakes (Rear): Single piston, floating caliper; 240 mm stainless steel, fixed rotor
    • Suspension Travel (Front): 5.63 in. (143 mm)
    • Suspension Travel (Rear): 5.63 in. (143 mm)
    Electric
    • Battery: Sealed lead acid, maintenance-free, 12V, 12 amp/hour, 200 cca (per Battery Council International Rating)
    • Charging: 494W peak, 38-amp, permanent magnet, 3-phase alternator with solid-state regulator
    • Starting: 1.2 kW electric with solenoid shift starter motor engagement
    • Headlamps Type: Twin projector beam [H7]
    • Headlamps Description: 55-watt low beam, 55-watt high beam
    • Tail/Stop Lights: 5W/21W
    • Turn Signal Lights: 10W manual canceling
    • License Plate Light: 5W
    Styling/Convenience
    • Instruments: Electronic speedometer, tachometer, odometer; dual resettable tripmeter; high beam, neutral, oil, low fuel (plus, odometer show miles traveled on reserve), turn signal and engine diagnostic indicator lamps; clock
    Colors
    • Available Colors: Arctic White and Barricade Orange
    Warranty
    • Warranty: 24 months (unlimited mileage)

    Specifications

    Engine
    Engine Type Air/oil/fan-cooled, 4-stroke, 45° V-Twin
    Displacement 73.4 cu. in. (1203 cc)
    Bore and Stroke 3.500 x 3.812 in. (88.90 x 96.82 mm)
    Cooling Fan-cooled
    Compression Ratio 10.0:1
    Fuel System 49 mm down draft DDFI II fuel injection
    Chassis
    Front Suspension Travel: 5.63 in. (143 mm), Front Fork: 43 mm Showa® inverted forks with adjustable compression damping, rebound damping and spring preload
    Front Brakes ZTL™-type brake, 6-piston, fixed caliper, 375 mm single-sided, inside-out, stainless steel, floating rotor
    Front Tire Pirelli® Scorpion Sync: 120/70 ZR-17
    Rear Suspension Travel: 5.63 in. (143 mm), Rear Shock: Showa® coil-over monoshock with remote, under-seat reservoir and adjustable compression damping, rebound damping and spring preload
    Rear Brakes Single piston, floating caliper; 240 mm stainless steel, fixed rotor
    Rear Tire Pirelli® Scorpion Sync: 180/55 ZR-17
    Dimensions
    Dry Weight 400 lbs. (181 kg)
    Fuel Capacity 4.40 gal. (16.7 l)
    Wheelbase 54.0 in. (1372 mm)
    MPG Urban: 48 MPG (4.9 l/100 km), Highway: 65 MPG (3.6 l/100 km)
    Seat Height 30.4 in. (798 mm)
    Trail 4.7 in. (119 mm)
    Rake At Steering Head: 23.1°
    Transmission
    Transmission 5-speed, helical gear
    Final Drive Constant path, 14 mm pitch aramid-reinforced Hibrex® belt with Flexten® Plus technology, 2.407:1 (65/27) ratio
    General
    Speedometer Electronic
    Tachometer Electronic
    Odometer Electronic, Dual resettable tripmeter (plus, odometer show miles traveled on reserve)
    Colors Arctic White and Barricade Orange
    Warranty 24 months (unlimited mileage)

    Compare Models

    		 Print








    Year 2007
    Manufacturer Buell®
    Model Lightning® Super TT XB12STT
    Style Sport
    MSRP* $10,295.00
    Chassis
    Front Suspension Travel: 5.63 in. (143 mm), Front Fork: 43 mm Showa® inverted forks with adjustable compression damping, rebound damping and spring preload
    Front Brakes ZTL™-type brake, 6-piston, fixed caliper, 375 mm single-sided, inside-out, stainless steel, floating rotor
    Front Tire Pirelli® Scorpion Sync: 120/70 ZR-17
    Rear Suspension Travel: 5.63 in. (143 mm), Rear Shock: Showa® coil-over monoshock with remote, under-seat reservoir and adjustable compression damping, rebound damping and spring preload
    Rear Brakes Single piston, floating caliper; 240 mm stainless steel, fixed rotor
    Rear Tire Pirelli® Scorpion Sync: 180/55 ZR-17
    Dimensions
    Dry Weight 400 lbs. (181 kg)
    Fuel Capacity 4.40 gal. (16.7 l)
    Wheelbase 54.0 in. (1372 mm)
    MPG Urban: 48 MPG (4.9 l/100 km), Highway: 65 MPG (3.6 l/100 km)
    Seat Height 30.4 in. (798 mm)
    Trail 4.7 in. (119 mm)
    Rake At Steering Head: 23.1°
    Engine
    Engine Type Air/oil/fan-cooled, 4-stroke, 45° V-Twin
    Displacement 73.4 cu. in. (1203 cc)
    Bore and Stroke 3.500 x 3.812 in. (88.90 x 96.82 mm)
    Cooling Fan-cooled
    Compression Ratio 10.0:1
    Fuel System 49 mm down draft DDFI II fuel injection
    Ignition
    General
    Speedometer Electronic
    Tachometer Electronic
    Odometer Electronic, Dual resettable tripmeter (plus, odometer show miles traveled on reserve)
    Colors Arctic White and Barricade Orange
    Warranty 24 months (unlimited mileage)
    Transmission
    Transmission 5-speed, helical gear
    Final Drive Constant path, 14 mm pitch aramid-reinforced Hibrex® belt with Flexten® Plus technology, 2.407:1 (65/27) ratio
